2SC2335 - SILICON POWER TRANSISTOR

Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples.

Features

  • Low collector saturation voltage: VCE(sat) = 1.0 V MAX. @IC = 3.0 A.
  • Fast switching speed: tf = 1.0 µs MAX. @IC = 3.0 A.
  • Wide base reverse-bias SOA: VCEX(SUS)1 = 450 V MIN. @IC = 3.0 A (TO-220AB).

📥 Download Datasheet

Datasheet Details

Part number 2SC2335
Manufacturer NEC
File Size 130.58 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2335 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC2335 SILICON POWER TRANSISTOR SavantIC
2SC2335 NPN Transistor INCHANGE
2SC2335 Silicon NPN transistor BLUE ROCKET ELECTRONICS
2SC2335F SILICON POWER TRANSISTOR SavantIC
2SC2330 NPN SILICON EPITAXIAL TRANSISTOR ETC

Other Datasheets by NEC

Part Number Description
2SC2331 Silicon Power Transistor
2SC2333 PNP Transistor
2SC2334 NPN Transistor
2SC2336 PNP/NPN Transistor
2SC2336A PNP/NPN Transistor

Full PDF Text Transcription

Click to expand full text

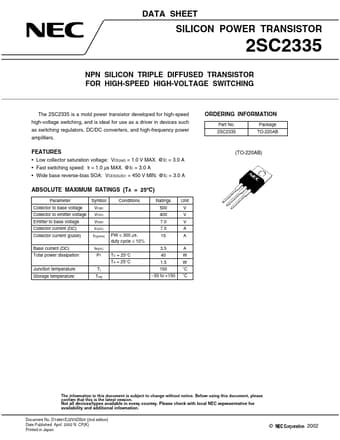

www.DataSheet4U.com DATA SHEET SILICON POWER TRANSISTOR 2SC2335 NPN SILICON TRIPLE DIFFUSED TRANSISTOR FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING The 2SC2335 is a mold power transistor developed for high-speed high-voltage switching, and is ideal for use as a driver in devices such as switching regulators, DC/DC converters, and high-frequency power amplifiers. ORDERING INFORMATION Part No. 2SC2335 Package TO-220AB FEATURES • Low collector saturation voltage: VCE(sat) = 1.0 V MAX. @IC = 3.0 A • Fast switching speed: tf = 1.0 µs MAX. @IC = 3.0 A • Wide base reverse-bias SOA: VCEX(SUS)1 = 450 V MIN. @IC = 3.
