2SC1922 - SILICON POWER TRANSISTOR

📥 Download Datasheet

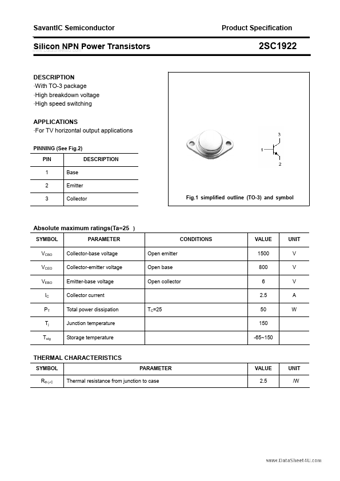

Preview of 2SC1922 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC1922
Manufacturer SavantIC
File Size 134.84 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1922_SavantIC.pdf

2SC1922 Product details

Description

With TO-3 package High breakdown voltage High speed switching APPLICATIONS For TV horizontal output applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature TC=25 Open emitter Open ba
