2SC1921 Silicon NPN Transistor

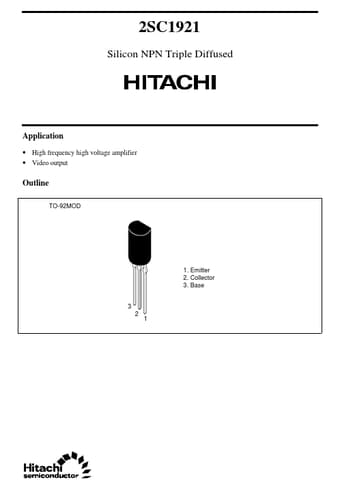

2SC1921 Silicon NPN Triple Diffused Application High frequency high voltage amplifier Video output Outline TO-92MOD 1. Emitter 2. Collector 3. Base 3 2 1 2SC1921 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 250 200 5 50 600 150 55 to +150 Unit V V V mA mW °C °.
