2SC1922 - NPN Transistor

Description

With TO-3 Package Low collector saturation voltage

and reliable operation.

Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collect

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC1922 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC1921 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC1921 - Silicon NPN Triple Diffused Type Transistor (Renesas)
  • 2SC1923 - Silicon NPN Transistor (Toshiba Semiconductor)
  • 2SC1923 - NPN Transistor (SeCoS)
  • 2SC1923 - NPN Transistor (JCST)
  • 2SC1923 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SC1923 - NPN Transistor (SEMTECH)
  • 2SC1923 - NPN Transistors (Kexin)
  • 2SC1923-O - Power Silicon NPN Transistor (MCC)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

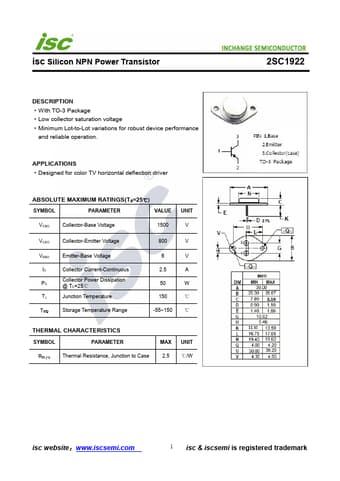

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC1922 DESCRIPTION ·With TO-3 Package ·Low collector saturation voltage ·Minimum Lot-to-Lot variations for robust device performance and reliable operation. APPLICATIONS ·Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation @ TC=25℃ Junction Temperature Storage Temperature Range 6 V 2.5 A 50 W 150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX UNIT 2.5 ℃/W isc website：www.iscsemi.
