2SC1868 - SILICON POWER TRANSISTOR

The 2SC1868 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SC1868 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC1868
Manufacturer SavantIC
File Size 135.02 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1868_SavantIC.pdf
Additional preview pages of the 2SC1868 datasheet.

2SC1868 Product details

Description

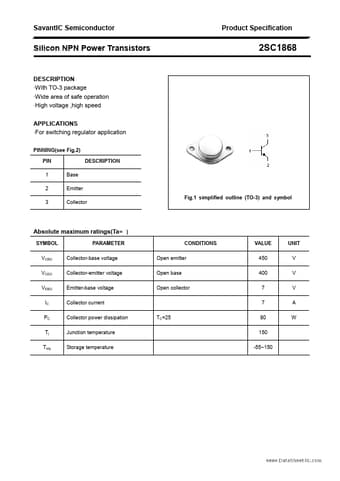

With TO-3 package Wide area of safe operation High voltage ,high speed APPLICATIONS For switching regulator application PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS O
