2SC1567A, 2SC1567 - SILICON POWER TRANSISTOR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC1567A, 2SC1567. Please refer to the document for exact specifications by model.

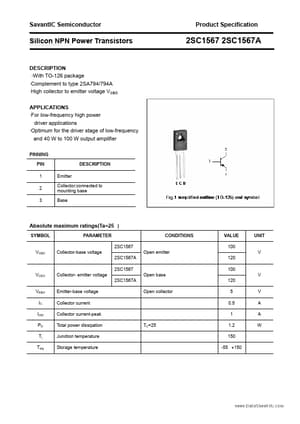

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SC1567A, 2SC1567
Manufacturer SavantIC
File Size 132.15 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1567_SavantIC.pdf
Note This datasheet PDF includes multiple part numbers: 2SC1567A, 2SC1567.
Please refer to the document for exact specifications by model.

2SC1567A Product details

Description

With TO-126 package Complement to type 2SA794/794A High collector to emitter voltage VCEO APPLICATIONS For low-frequency high power driver applications Optimum for the driver stage of low-frequency and 40 W to 100 W output amplifier PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC1567 VCBO Collector-base voltage 2SC1567A 2SC1567 VCEO Collector- emitter voltage 2SC1567A VEBO IC ICM PD Tj
