2SC1501 - SILICON POWER TRANSISTOR

Description

With TO-126 package High breakdown voltage Large power dissipation APPLICATIONS For medium power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage

📥 Download Datasheet

Datasheet Details

Part number 2SC1501
Manufacturer SavantIC
File Size 131.14 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1501 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC1504 NPN Transistor INCHANGE
2SC1505 Silicon Power Transistor NEC
2SC1505 NPN Transistor INCHANGE
2SC1506 NPN Silicon Transistor NEC
2SC1507 NPN Transistor INCHANGE

Other Datasheets by SavantIC

Part Number Description
2SC1504 SILICON POWER TRANSISTOR
2SC1514 SILICON POWER TRANSISTOR
2SC1516 SILICON POWER TRANSISTOR
2SC1520 SILICON POWER TRANSISTOR
2SC1567 SILICON POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

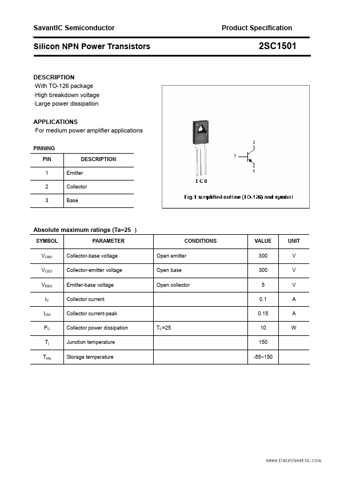

SavantIC Semiconductor www.DataSheet4U.com Product Specification Silicon NPN Power Transistors 2SC1501 DESCRIPTION ·With TO-126 package ·High breakdown voltage ·Large power dissipation APPLICATIONS ·For medium power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector Base Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Collector power dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector VALUE 300 300 5 0.1 0.15 10 150 -55~150 UNIT V V V A A W SavantIC Semiconductor www.DataSheet4U.
