The 2SC1170 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.
| Part number | 2SC1170 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 188.02 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SC1170_SavantIC.pdf
|
|
|

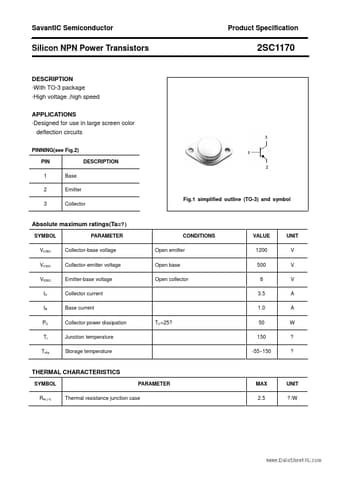

With TO-3 package High voltage ,high speed APPLICATIONS Designed for use in large screen color deflection circuits PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature TC=25? COND
