2SC1162 - SILICON POWER TRANSISTOR

The 2SC1162 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

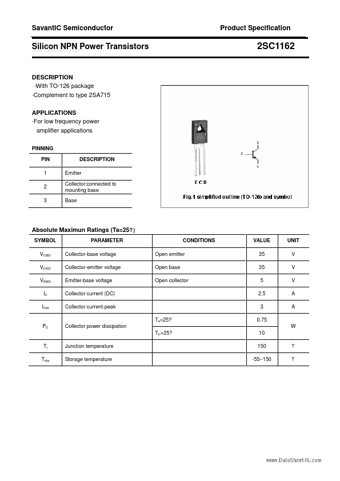

Official preview page of the 2SC1162 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SC1162
Manufacturer SavantIC
File Size 128.14 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC1162_SavantIC.pdf
Additional preview pages of the 2SC1162 datasheet.

2SC1162 Product details

Description

With TO-126 package Complement to type 2SA715 APPLICATIONS For low frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Absolute Maximun Ratings (Ta=25? ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-peak Ta=25? PC Collector power dissipation TC=25? Tj Tstg Junction temperature Storage temperature 10 150 -55~150
