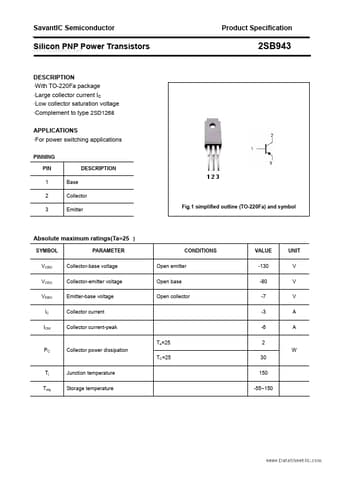

The 2SB943 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.
| Part number | 2SB943 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 139.28 KB |
| Description | SILICON POWER TRANSISTOR |
| Datasheet |
 2SB943_SavantIC.pdf
|
|
|
With TO-220Fa package Large collector current IC Low collector saturation voltage Complement to type 2SD1268 APPLICATIONS For power switching applications PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Ta=25 PC Collector power dissipation
