2SB941 - Silicon PNP transistor

Description

TO-220F PNP 。Silicon PNP transistor in a TO-220F Plastic Package.

Features

  • hFE 、-、 TO-220 。 High forward current transfer ratio hFE which has satisfactory linearity, low collector to emitter saturation voltage VCE(sat) Full-pack package which can be installed to the heat sink with one screw.  /.

📥 Download Datasheet

Datasheet Details

Part number 2SB941
Manufacturer BLUE ROCKET ELECTRONICS
File Size 812.04 KB
Description Silicon PNP transistor
Datasheet download datasheet 2SB941 Datasheet

📁 Similar Datasheet

  • 2SB941 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB941 - Power Transistors (Panasonic Semiconductor)
  • 2SB941 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB941A - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB941A - Power Transistors (Panasonic Semiconductor)
  • 2SB941A - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB940 - PNP Transistor (Panasonic Semiconductor)
  • 2SB940 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB940 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB940 - SILICON PNP TRANSISTOR (LZG)
Other Datasheets by BLUE ROCKET ELECTRONICS

Full PDF Text Transcription

Click to expand full text

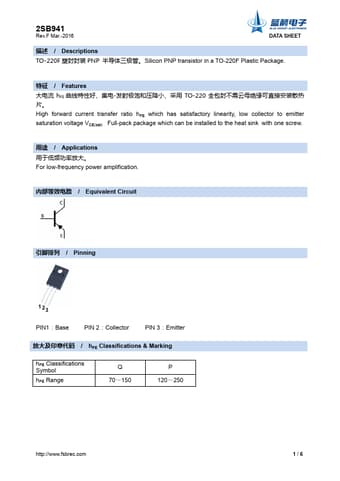

2SB941 Rev.F Mar.-2016 DATA SHEET / Descriptions TO-220F PNP 。Silicon PNP transistor in a TO-220F Plastic Package.  / Features hFE 、-、 TO-220 。 High forward current transfer ratio hFE which has satisfactory linearity, low collector to emitter saturation voltage VCE(sat) Full-pack package which can be installed to the heat sink with one screw.  / Applications 。 For low-frequency power amplification. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 70～150 P 120～250 http://www.fsbrec.com 1/6 2SB941 Rev.F Mar.
