2SB449 - SILICON POWER TRANSISTOR

📥 Download Datasheet

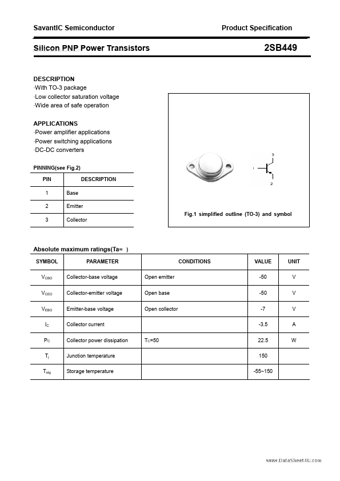

Preview of 2SB449 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SB449
Manufacturer SavantIC
File Size 134.42 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SB449_SavantIC.pdf

2SB449 Product details

Description

With TO-3 package Low collector saturation voltage Wide area of safe operation APPLICATIONS Power amplifier applications Power switching applications DC-DC converters PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Ju
