2SB468 - PNP Transistor

📥 Download Datasheet

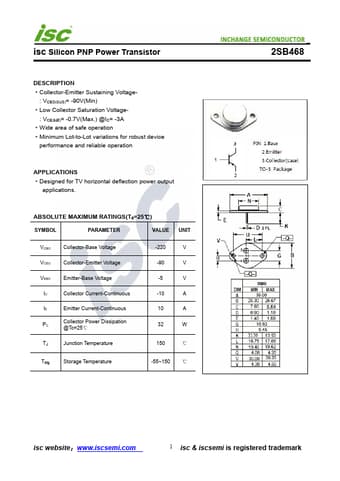

Preview of 2SB468 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SB468
Manufacturer INCHANGE
File Size 204.55 KB
Description PNP Transistor
Datasheet download datasheet 2SB468-INCHANGE.pdf

2SB468 Product details

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -90V(Min) Low Collector Saturation Voltage- : VCE(sat)= -0.7V(Max.) @IC= -3A Wide area of safe operation Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for TV horizontal deflection power output applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO VCEO VEBO IC IE PC TJ Collector-Base Voltage Collector-Emitter Voltage Emitter-Base
