2SA957 - (2SA957 / 2SA958) Silicon POwer Transistors

📥 Download Datasheet

Preview of 2SA957 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA957
Manufacturer SavantIC
File Size 127.10 KB
Description (2SA957 / 2SA958) Silicon POwer Transistors
Datasheet download datasheet 2SA957_SavantIC.pdf

2SA957 Product details

Description

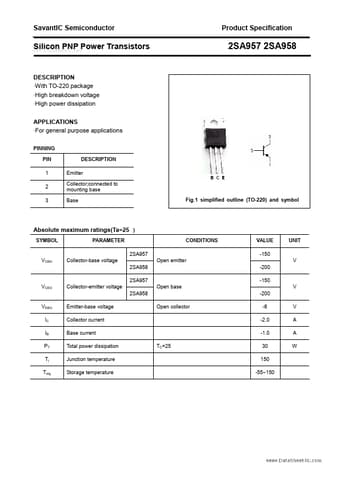

With TO-220 package High breakdown voltage High power dissipation APPLICATIONS For general purpose applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SA957 VCBO Collector-base voltage 2SA958 2SA957 VCEO Collector-emitter voltage 2SA958 VEBO IC IB PT Tj Tstg Emitter-base voltage Collector current Base current Total power dissipation Junctio
