2SA953 - SILICON PNP TRANSISTOR

LZG

📥 Download Datasheet

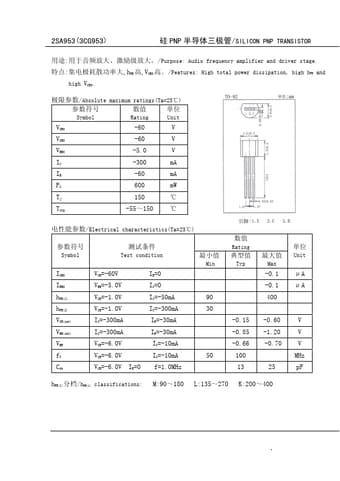

2SA953 Datasheet Preview — Preview of 2SA953 PDF

datasheet Preview Page 2

Datasheet Details

Part number	2SA953
Manufacturer	LZG
File Size	530.36 KB
Description	SILICON PNP TRANSISTOR
Datasheet	2SA953-LZG.pdf

2SA953 Product details

Features

High total power dissipation, high hFE and high VCEO. /Absolute maximum ratings(Ta=25℃) Symbol Rating Unit VCBO -60 V VCEO -60 V VEBO -5.0 V IC -300 mA IB -60 mA PC 600 mW Tj 150 ℃ Tstg -55～150 ℃ /Electrical characteristics(Ta=25℃) Symbol Test condition ICBO IEBO hFE(1) hFE(2) VCE(sat) VBE(sat) VBE fT Cob VCB=-60V VEB=-5.0V VCE=-1.0V VCE=-1.0V IC=-300mA IC=-300mA VCE=-6.0V VCE=-6.0V VCB=-6.0V IE=0 IE=0 IC=0 IC=-50mA IC=-300mA IB=-30mA IB=-30mA IC=-10mA IC=-10mA f=1.
