2SA877 - (2SA877 / 2SA878) Silicon POwer Transistors

The 2SA877 by SavantIC is a (2SA877 / 2SA878) Silicon POwer Transistors. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 2SA877 (2SA877 / 2SA878) Silicon POwer Transistors datasheet (SavantIC).

Datasheet Details

Part number 2SA877
Manufacturer SavantIC
File Size 137.28 KB
Description (2SA877 / 2SA878) Silicon POwer Transistors
Datasheet download datasheet 2SA877_SavantIC.pdf
Additional preview pages of the 2SA877 datasheet.

2SA877 Product details

Description

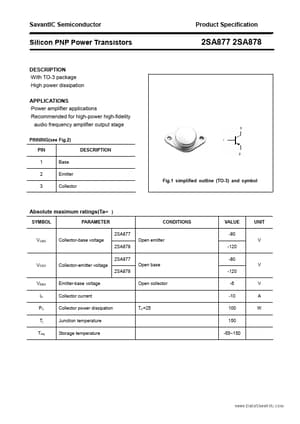

With TO-3 package High power dissipation APPLICATIONS Power amplifier applications Recommended for high-power high-fidelity audio frequency amplifier output stage PINNING(see Fig.2) PIN 1 2 3 Base Emitter Fig.1 simplified outline (TO-3) and symbol Collector DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA877 VCBO Collector-base voltage 2SA878 2SA877 VCEO Collector-emitter voltage 2SA878 VEBO IC PC Tj Tstg Emitter-base voltage Collector current Collector power
