2SA807 - Silicon POwer Transistors

SavantIC

The 2SA807 by SavantIC is a Silicon POwer Transistors. Below is the official datasheet preview.

📥 Download Datasheet

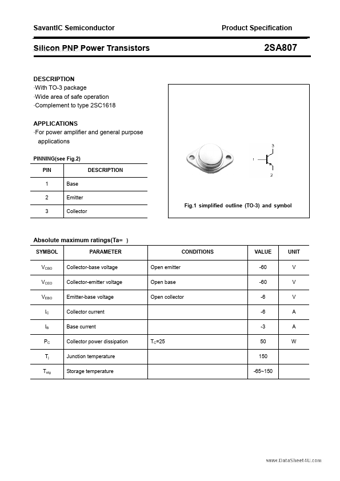

2SA807 Silicon POwer Transistors by SavantIC - Datasheet Preview — Official preview page of the **2SA807** Silicon POwer Transistors datasheet (SavantIC).

Datasheet Details

Part number	2SA807
Manufacturer	SavantIC
File Size	144.99 KB
Description	Silicon POwer Transistors
Datasheet	2SA807_SavantIC.pdf
Additional preview pages of the 2SA807 datasheet.

2SA807 Product details

Description

With TO-3 package Wide area of safe operation Complement to type 2SC1618 APPLICATIONS For power amplifier and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Sto
