2SA765 - Silicon POwer Transistors

SavantIC

📥 Download Datasheet

2SA765 Datasheet Preview — Preview of 2SA765 PDF

Datasheet Details

Part number	2SA765
Manufacturer	SavantIC
File Size	138.79 KB
Description	Silicon POwer Transistors
Datasheet	2SA765_SavantIC.pdf

2SA765 Product details

Description

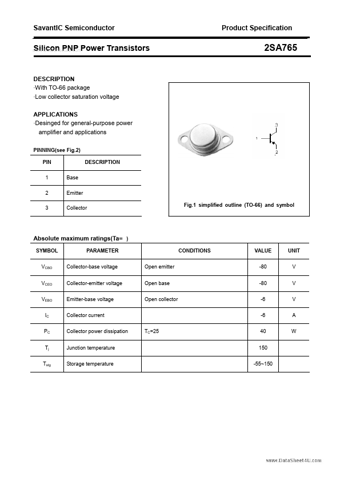

With TO-66 package Low collector saturation voltage APPLICATIONS Desinged for general-purpose power amplifier and applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature TC=25 Open emit
