2SA762 - PNP Transistor

The 2SA762 by INCHANGE is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

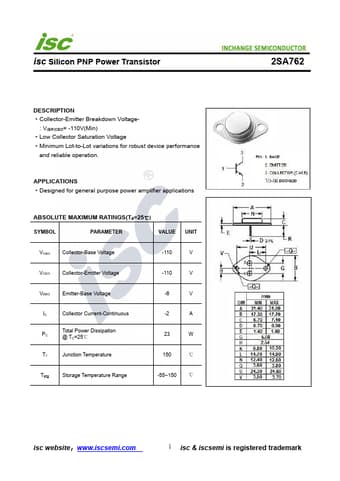

Official preview page of the 2SA762 PNP Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SA762
Manufacturer INCHANGE
File Size 176.18 KB
Description PNP Transistor
Datasheet download datasheet 2SA762-INCHANGE.pdf
Additional preview pages of the 2SA762 datasheet.

2SA762 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -110V(Min) Low Collector Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for general purpose power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -110 V VCEO Collector-Emitter Voltage -110 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous PC Total Power D
