| Part number | 2SA745, 2SA744 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 146.13 KB |
| Description | (2SA744 / 2SA745) Silicon POwer Transistors |
| Datasheet |
 2SA744_SavantIC.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2SA745, 2SA744. Please refer to the document for exact specifications by model. |

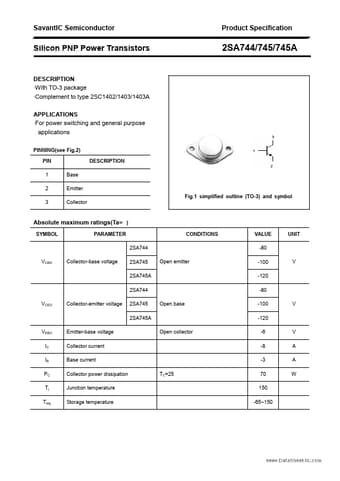

With TO-3 package Complement to type 2SC1402/1403/1403A APPLICATIONS For power switching and general purpose applications PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta= ) SYMBOL PARAMETER 2SA744 VCBO Collector-base voltage 2SA745 2SA745A 2SA744 VCEO Collector-emitter voltage 2SA745 2SA745A VEBO IC IB PC Tj Tstg Emitter-base voltage Collector current Base current Collector power dissipation Ju
