2SA740 - Silicon POwer Transistors

📥 Download Datasheet

Preview of 2SA740 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 2SA740
Manufacturer SavantIC
File Size 117.46 KB
Description Silicon POwer Transistors
Datasheet download datasheet 2SA740_SavantIC.pdf

2SA740 Product details

Description

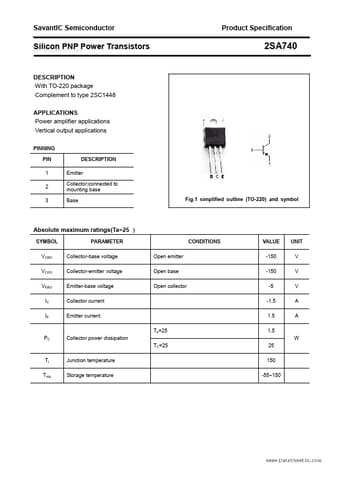

With TO-220 package Complement to type 2SC1448 APPLICATIONS Power amplifier applications Vertical output applications PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IE PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Emitter current Ta=25 PC Collector power dissipation TC=25 Tj Tstg Junction t
