2SA489 - Silicon POwer Transistors

SavantIC

📥 Download Datasheet

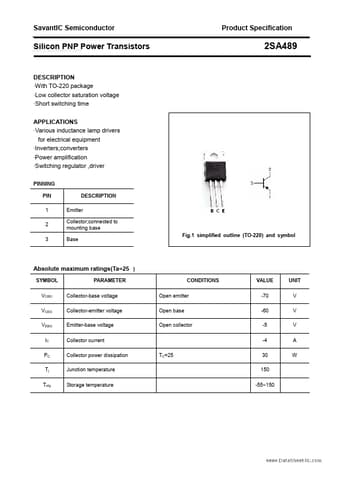

2SA489 Datasheet Preview — Preview of 2SA489 PDF

Datasheet Details

Part number	2SA489
Manufacturer	SavantIC
File Size	122.18 KB
Description	Silicon POwer Transistors
Datasheet	2SA489_SavantIC.pdf

2SA489 Product details

Description

With TO-220 package Low collector saturation voltage Short switching time APPLICATIONS Various inductance lamp drivers for electrical equipment Inverters;converters Power amplification Switching regulator ,driver PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltag
