2SA1006A, 2SA1006 - Silicon POwer Transistors

SavantIC

📥 Download Datasheet

2SA1006A Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SA1006A, 2SA1006. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	2SA1006A, 2SA1006
Manufacturer	SavantIC
File Size	153.38 KB
Description	Silicon POwer Transistors
Datasheet	2SA1006_SavantIC.pdf
Note	This datasheet PDF includes multiple part numbers: 2SA1006A, 2SA1006. Please refer to the document for exact specifications by model.

2SA1006A Product details

Description

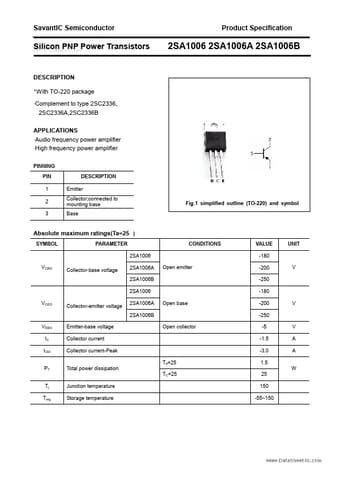

With TO-220 package Complement to type 2SC2336, 2SC2336A,2SC2336B APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SA1006 VCBO Collector-base voltage 2SA1006A 2SA1006B 2SA1006 VCEO Collector-emitter voltage 2SA1006A 2SA1006B VEBO IC ICM PT Tj Tstg Emitter-base voltage Collec
