2SA1939 - SILICON POWER TRANSISTOR

The 2SA1939 by SavantIC is a SILICON POWER TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

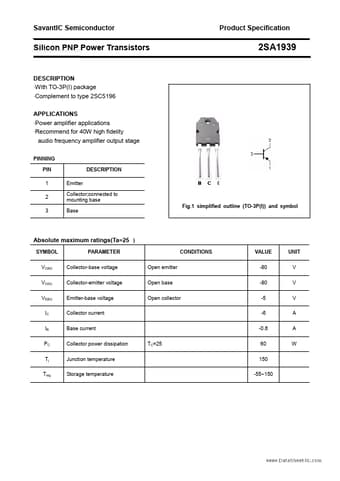

Official preview page of the 2SA1939 SILICON POWER TRANSISTOR datasheet (SavantIC).

Datasheet Details

Part number 2SA1939
Manufacturer SavantIC
File Size 200.02 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SA1939_SavantIC.pdf
Additional preview pages of the 2SA1939 datasheet.

2SA1939 Product details

Description

With TO-3P(I) package Complement to type 2SC5196 APPLICATIONS Power amplifier applications Recommend for 40W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base Fig.1 simplified outline (TO-3P(I)) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collect
