STK4162 - AF Power Amplifier

Sanyo

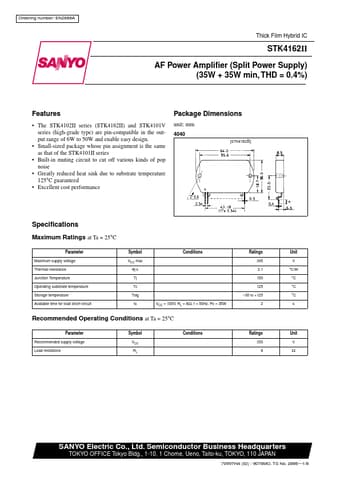

STK4162 Datasheet Preview — Preview of STK4162 PDF

Datasheet Details

Part number	STK4162
Manufacturer	Sanyo
File Size	460.47 KB
Description	AF Power Amplifier
Datasheet	STK4162_Sanyo.pdf

STK4162 Product details

Description

of External Parts C1, C2 Input ﬁlter capacitors A ﬁlter formed with R3 or R4 can be used to reduce noise at high frequencies. Used to block DC current. To reduce the pop noise at the time of application of power, it is effective to increase C3,

Features

The STK4102II series (STK4162II) and STK4101V series (high-grade type) are pin-compatible in the output range of 6W to 50W and enable easy design.
Small-sized package whose pin assignment is the same as that of the STK4101II series.
Built-in muting circuit to cut off various kinds of pop noise.
Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
Excellent cost performance Package Dimensions unit: mm 4040 [STK4162II] Speciﬁcati.
