STK4161V - AF Power Amplifier

Sanyo

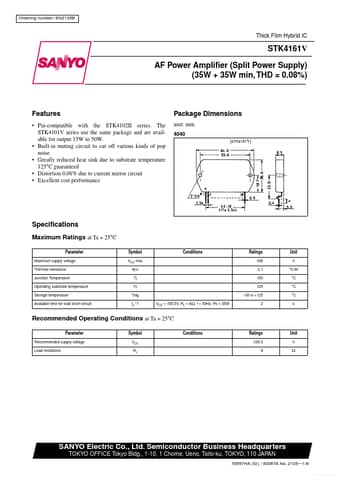

STK4161V Datasheet Preview — Preview of STK4161V PDF

Datasheet Details

Part number	STK4161V
Manufacturer	Sanyo
File Size	264.70 KB
Description	AF Power Amplifier
Datasheet	STK4161V-Sanyo.pdf

STK4161V Product details

Description

of External Parts No.2135 5/8 Free Datasheet http://www.datasheet4u.net/ STK4161V C3, C4 Input ﬁlter capacitors A ﬁlter formed with R5 or R6 can be used to reduce noise at high frequencies. Used to block DC current. To reduce the pop

Features

Pin-compatible with the STK4102II series. The STK4101V series use the same package and are available for output 15W to 50W.
Built-in muting circuit to cut off various kinds of pop noise.
Greatly reduced heat sink due to substrate temperature 125°C guaranteed.
Distortion 0.08% due to current mirror circuit.
Excellent cost performance Package Dimensions unit: mm 4040 [STK4161V] Speciﬁcations Maximum Ratings at Ta = 25°C Parameter Maximum supply volt.
