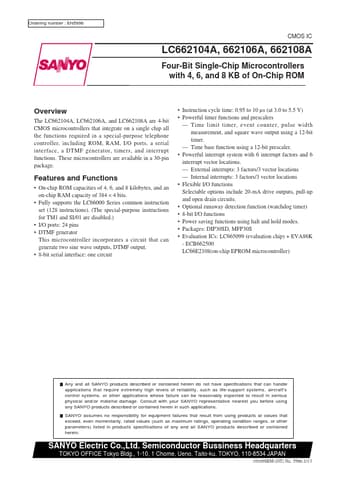

LC662106A - Four-Bit Single-Chip Microcontrollers

Sanyo

Datasheet Details

Part number	LC662106A
Manufacturer	Sanyo
File Size	104.89 KB
Description	Four-Bit Single-Chip Microcontrollers
Datasheet	LC662106A_SanyoSemiconDevice.pdf

and Functions.
On-chip ROM capacities of 4, 6, and 8 kilobytes, and an on-chip RAM capacity of 384 × 4 bits.
Fully supports the LC66000 Series common instruction set (128 instructions). (The special-purpose instructions for TM1 and SI/01 are disabled. ).
I/O ports: 24 pins.
DTMF generator This microcontroller incorporates a circuit that can generate two sine wave outputs, DTMF output.
8-bit serial interface: one circuit.
Instruction cycle t.
