LC662308A - Four-Bit Single-Chip Microcontroller

Features

  • and Functions.
  • On-chip ROM capacities of 4, 6, 8, 12, and 16 kilobytes, and an on-chip RAM capacity of 512 × 4 bits.
  • Fully supports the LC66000 Series common instruction set (128 instructions).
  • I/O ports: 36 pins.
  • DTMF generator This microcontroller incorporates a circuit that can generate two sine wave outputs, DTMF output, or a melody ou.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LC662316A Four-Bit Single-Chip Microcontrollers Sanyo Semicon Device
LC662508A Four-Bit Single-Chip Microcontroller with 16 KB of On-Chip EPROM Sanyo Semicon Device
LC662512A Four-Bit Single-Chip Microcontrollers Sanyo Semicon Device
LC662516A Four-Bit Single-Chip Microcontroller Sanyo Semicon Device
LC66304A 4-bit single-chip microcomputer with EPROM Sanyo Semicon Device

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LC662304A Four-Bit Single-Chip Microcontroller
LC662306A Four-Bit Single-Chip Microcontrollers
LC662312A Four-Bit Single-Chip Microcontrollers
LC662104A Four-Bit Single-Chip Microcontroller
LC662106A Four-Bit Single-Chip Microcontrollers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

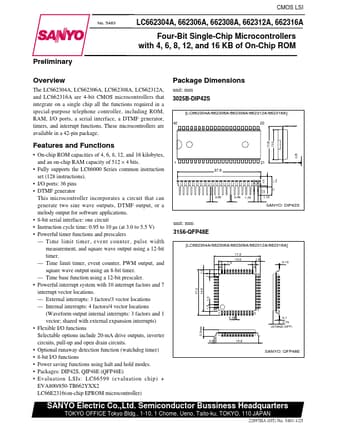

Preliminary No. 5483 CMOS LSI LC662304A, 662306A, 662308A, 662312A, 662316A Four-Bit Single-Chip Microcontrollers with 4, 6, 8, 12, and 16 KB of On-Chip ROM Overview The LC662304A, LC662306A, LC662308A, LC662312A, and LC662316A are 4-bit CMOS microcontrollers that integrate on a single chip all the functions required in a special-purpose telephone controller, including ROM, RAM, I/O ports, a serial interface, a DTMF generator, timers, and interrupt functions. These microcontrollers are available in a 42-pin package. Package Dimensions unit: mm 3025B-DIP42S [LC662304A/662306A/662308A/662312A/662316A] 42 22 15.24 13.8 0.25 Features and Functions • On-chip ROM capacities of 4, 6, 8, 12, and 16 kilobytes, and an on-chip RAM capacity of 512 × 4 bits.
