LA5614M Charging IC for Nickel Cadmium and Nickel Metal Hydride Batteries

LA5614M Description

Ordering number :ENN5238 Monolithic Linear IC LA5614M Charging IC for Nickel * Cadmium and Nickel Metal Hydride Batteries Functions and Fea.

LA5614M Features

* Ideally suited for charging systems that use a microcontroller due to charge voltage detection.
* Cycle charge/trickle charge switching.
* Change current can be set with external resistor. Package Dimensions unit: mm 3086A-MFP10S [LA5614M] 10 6 0.625 1.8 max 0.15 0.55 0.1

LA5614M Applications

* that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO

📥 Download Datasheet

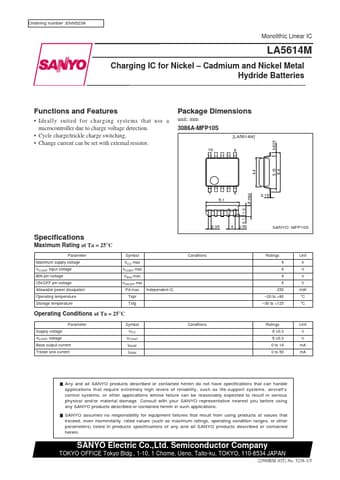

Preview of LA5614M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LA5614M
Manufacturer
Sanyo
File Size
75.94 KB
Datasheet
LA5614M_SanyoSemiconDevice.pdf
Description
Charging IC for Nickel Cadmium and Nickel Metal Hydride Batteries
