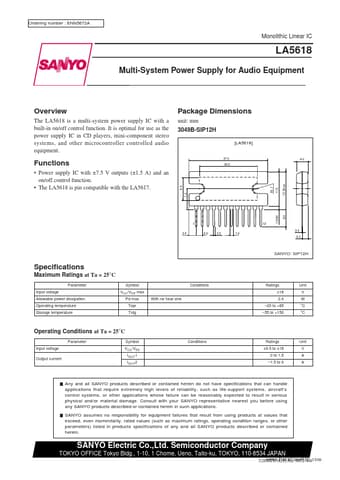

Ordering number : ENN5672A Monolithic Linear IC LA5618 Multi-System Power Supply for Audio Equipment Overview The LA5618 is a multi-system power supply IC with a built-in on/off control function. It is optimal for use as the power supply IC in CD players, mini-component stereo systems, and other microcontroller controlled audio equipment. Package Dimensions unit: mm 3049B-SIP12H [LA5618] Functions • Power supply IC with ±7.5 V outputs (±1.5 A) and an on/off control function. • The LA5618 is pin compatible with the LA5617. 27.0 20.0 4.0 7.0 1.0min 1 2.5 2.0 0.5 1.0 12 6.0 13.2max 8.4 R1.7 11.8 0.4 2.
