LA4265 - 3.5W Monaural Power Amplifier

Sanyo

📥 Download Datasheet

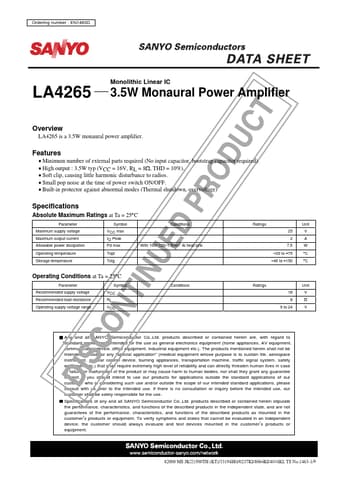

LA4265 Datasheet Preview — Preview of LA4265 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA4265
Manufacturer	Sanyo
File Size	132.60 KB
Description	3.5W Monaural Power Amplifier
Datasheet	LA4265-Sanyo.pdf

LA4265 Product details

Features

Minimum number of external parts required (No input capacitor, bootstrap capacitor required).
High output : 3.5W typ (VCC = 16V, RL = 8Ω, THD = 10%).
Soft clip, causing little harmonic disturbance to radios.
Small pop noise at the time of power switch ON/OFF.
Built-in protector against abnormal modes (Thermal shutdown, overvoltage) Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Maximum output current Allow.
