LA4261 - 3.5W 2-Channel AF Power Amplifier

Sanyo

📥 Download Datasheet

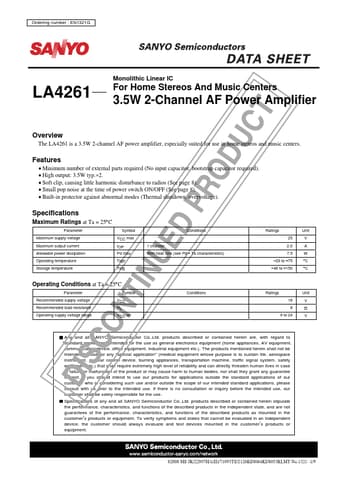

LA4261 Datasheet Preview — Preview of LA4261 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA4261
Manufacturer	Sanyo
File Size	198.62 KB
Description	3.5W 2-Channel AF Power Amplifier
Datasheet	LA4261-Sanyo.pdf

LA4261 Product details

Features

Minimum number of external parts required (No input capacitor, bootstrap capacitor required).
High output: 3.5W typ. ×2.
Soft clip, causing little harmonic disturbance to radios (See page 8).
Small pop noise at the time of power switch ON/OFF (See page 8).
Built-in protector against abnormal modes (Thermal shutdown, overvoltage). Specifications Maximum Ratings at Ta = 25°C Parameter Symbol Maximum supply voltage Maximum output current Allowab.
