C5416 - 2SC5416

Name: C5416
SKU: C5416-982801

Sanyo

The C5416 by Sanyo is a 2SC5416. Below is the official datasheet preview.

Datasheet Details

Part number	C5416
Manufacturer	Sanyo
File Size	45.10 KB
Description	2SC5416
Datasheet	C5416-Sanyo.pdf

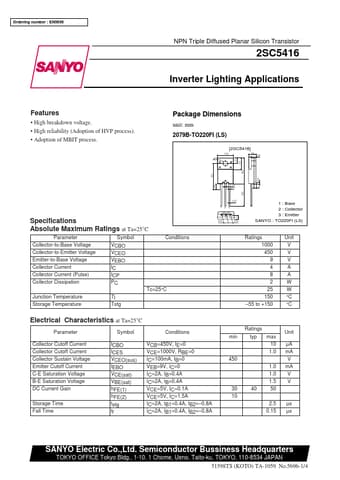

Additional preview pages of the C5416 datasheet.

High breakdown voltage.
High reliability (Adoption of HVP process).
Adoption of MBIT process. Package Dimensions unit: mm 2079B-TO220FI (LS) [2SC5416] 10.0 3.2 4.5 2.8 3.5 7.2 16.0 0.6 16.1 3.6 0.9 1.2 0.7 14.0 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Conditions Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation VCBO VCEO VEBO IC.
