C5406A, C5406 - Silicon NPN triple diffusion mesa type Power Transistors

Name: C5406A
SKU: C5406A-1320137

Panasonic

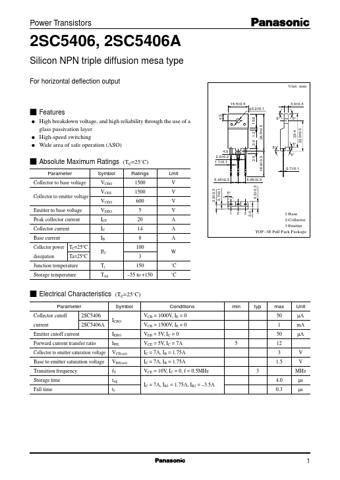

The C5406A by Panasonic is a Silicon NPN triple diffusion mesa type Power Transistors. Below is the official datasheet preview.

Datasheet Details

Part number	C5406A, C5406
Manufacturer	Panasonic
File Size	34.82 KB
Description	Silicon NPN triple diffusion mesa type Power Transistors
Datasheet	C5406-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: C5406A, C5406. Please refer to the document for exact specifications by model.
Additional preview pages of the C5406A datasheet.

q High breakdown voltage, and high reliability through the use of a glass passivation layer q High-speed switching q Wide area of safe operation (ASO) s Absolute Maximum Ratings (TC=25˚C) Parameter Symbol Ratings Collector to base voltage Collector to emitter voltage Emitter to base voltage Peak collector current Collector current Base current Collector power TC=25°C dissipation Ta=25°C VCBO VCES VCEO VEBO ICP IC IB PC 1500 1500 600 5 20 14 8 100 3 Junction temperature Storage te.
