C4222 2SC4222

C4222 Description

Ordering number:EN2761A NPN Triple Diffused Planar Silicon Transistor 2SC4222 500V/5A Switching Regulator Applications .

C4222 Features

* High breakdown voltage, high reliability.
* Fast switching speed (tf=0.1µs typ).
* Wide ASO.
* Adoption of MBIT process.
* Suitable for sets whose height is restricted. Package Dimensions unit:mm 2049C [2SC4222] 10.2 4.5 1.3 1.6 0.9 11.0 8.8 20.9 11.5 1.2 9.4 0.8 0.4 1

📥 Download Datasheet

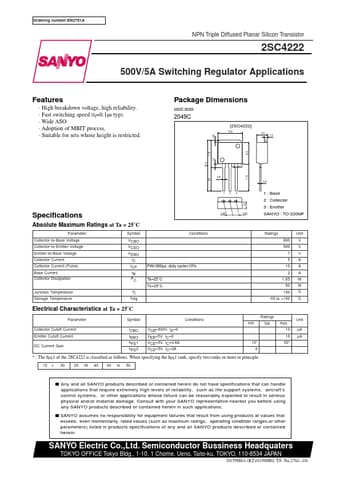

Preview of C4222 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4222
Manufacturer
Sanyo
File Size
93.24 KB
Datasheet
C4222-Sanyo.pdf
Description
2SC4222
