C4220 2SC4220

C4220 Description

Ordering number:EN2825A NPN Triple Diffused Planar Silicon Transistor 2SC4220 400V/7A Switching Regulator Applications .

C4220 Features

* High breakdown voltage, high reliability.
* Fast switching speed (tf=0.1µs typ).
* Wide ASO.
* Adoption of MBIT process.
* Suitable for sets whose height is restricted. Package Dimensions unit:mm 2049C [2SC4220] 10.2 4.5 1.3 1.6 0.9 11.0 8.8 20.9 11.5 1.2 9.4 0.8 0.4 S

📥 Download Datasheet

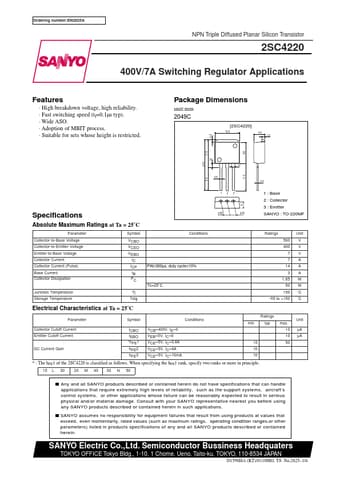

Preview of C4220 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4220
Manufacturer
Sanyo
File Size
103.96 KB
Datasheet
C4220-Sanyo.pdf
Description
2SC4220
