C3922 2SC3922

C3922 Description

Ordering number:EN2152A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1528/2SC3922 Switching Applications (with Bias Resistance) Applications .

C3922 Features

* On-chip bias resistance : R1=2.2KΩ, R2=10kΩ.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2003A [2SA1528/2SC3922] ( ) : 2SA1528 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Volta

C3922 Applications

* (with Bias Resistance) Applications

📥 Download Datasheet

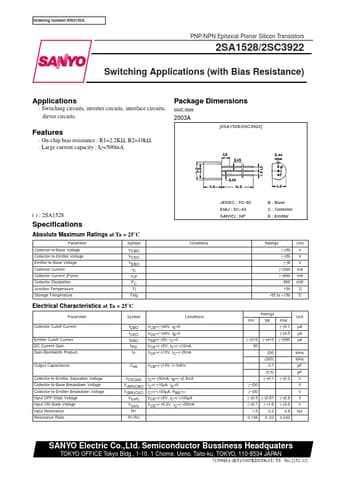

Preview of C3922 PDF
datasheet Preview Page 2

Datasheet Details

Part number
C3922
Manufacturer
Sanyo
File Size
39.86 KB
Datasheet
C3922-Sanyo.pdf
Description
2SC3922
