Ordering number:ENN2150B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1526/2SC3920 Switching Applications (with Bias Resistance) Applications

C3920 Features

* On-chip bias resistance : R1=10kΩ, R2=10kΩ.
* Large current capacity : IC=500mA. Package Dimensions unit:mm 2003B [2SA1526/2SC3920] 5.0 4.0 4.0 0.45 0.5 0.45 0.44 0.6 2.0 14.0 5.0 123 ( ) : 2SA1526 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Volt

C3920 Applications

* (with Bias Resistance) Applications

📥 Download Datasheet

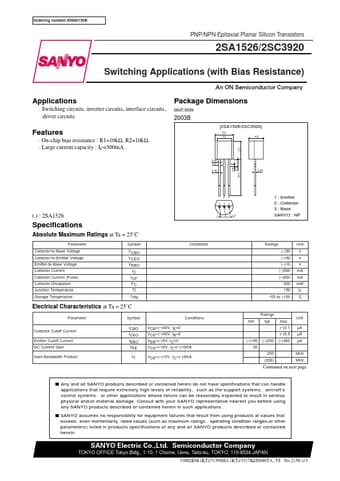

Preview of C3920 PDF
