B1397 PNP/NPN Epitaxial Planar Silicon Transistors

B1397 Description

Ordering number:EN3176A PNP/NPN Epitaxial Planar Silicon Transistors 2SB1397/2SD2100 Compact Motor Driver Applications .

B1397 Features

* Low saturation voltage.
* Contains diode between collector and emitter.
* Contains bias resistance between base and emitter.
* Large current capacity.

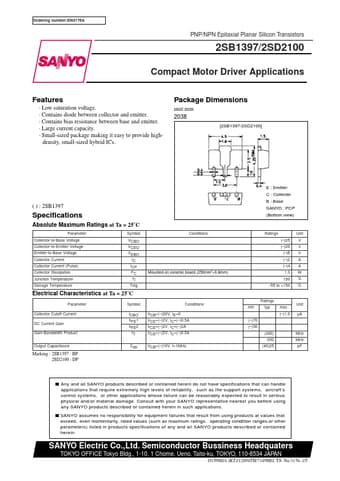

* Small-sized package making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit:mm 2038 [2SB139
