B1325 - PNP / NPN Epitaxial Planar Transistors

Features

  • Low saturation voltage.
  • Contains diode between collector and emitter.
  • Contains bias resistance between base and emitter.
  • Large current capacitance.
  • Small-sized package making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit : mm 2038A [2SB1325 / 2SD1999] 4.5 1.6 1.5 1.0 2.5 4.25max ( ) : 2SB1325 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
B1320 2SB1320 Panasonic Semiconductor
B1321A 2SB1321A Panasonic Semiconductor
B1322 Power Transistors Panasonic Semiconductor
B1322N1GB Built int Single oven Stainless Steel ETC
B1329N2B BRUSHLESS DC MOTOR CONSTAR

Other Datasheets by SANYO (now Panasonic)

Part Number Description
B1324 PNP / NPN Epitaxial Planar Silicon Transistors
B1302 PNP Epitaxial Planar Silicon Transistor
B1388 2SB1388
B1396 PNP Epitaxial Planar Silicon Transistor
B1397 PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

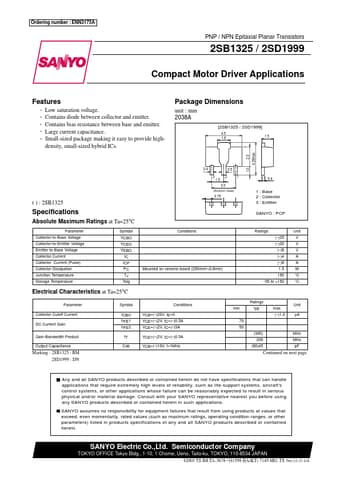

Ordering number : ENN3175A 2SB1325 / 2SD1999 PNP / NPN Epitaxial Planar Transistors 2SB1325 / 2SD1999 Compact Motor Driver Applications Features • Low saturation voltage. • Contains diode between collector and emitter. • Contains bias resistance between base and emitter. • Large current capacitance. • Small-sized package making it easy to provide high- density, small-sized hybrid ICs. Package Dimensions unit : mm 2038A [2SB1325 / 2SD1999] 4.5 1.6 1.5 1.0 2.5 4.
