A1831 2SA1831

A1831 Description

Ordering number:EN3686A PNPTriple Diffused Planar Silicon Transistors 2SA1831 High-Voltage Amplifier, High-Voltage Switching Applications .

A1831 Features

* High breakdown voltage (VCEO min=
* 800V).
* Small Cob (Cob typ=1.6pF).
* High reliabirity (Adoption of HVP processes). Package Dimensions unit:mm 2010B [2SA1831] Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Vol

📥 Download Datasheet

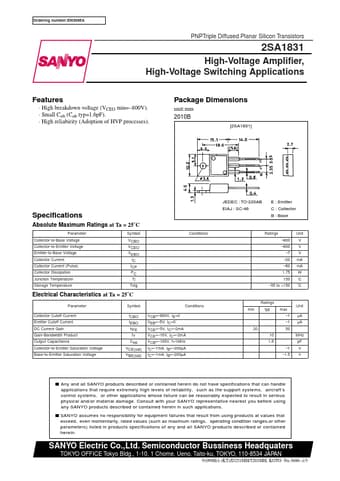

Preview of A1831 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1831
Manufacturer
Sanyo
File Size
89.62 KB
Datasheet
A1831-Sanyo.pdf
Description
2SA1831
