A1813 2SA1813

A1813 Description

Ordering number:EN3972 PNP Epitaxial Planar Silicon Transistor 2SA1813 Low-Frequency General-Purpose Amplifier Driver, Muting Circuit Applications F.

A1813 Features

* Very small-sized package permitting 2SA1813- applied sets to be made smaller and slimmer.
* Adoption of FBET process.
* High DC current gain (hFE=500 to 1200).
* Low collector-to-emitter saturation voltage (VCE(sat)≤0.3V).
* High VEBO (VEBO≥15V). Package Dimensions unit:mm 205

📥 Download Datasheet

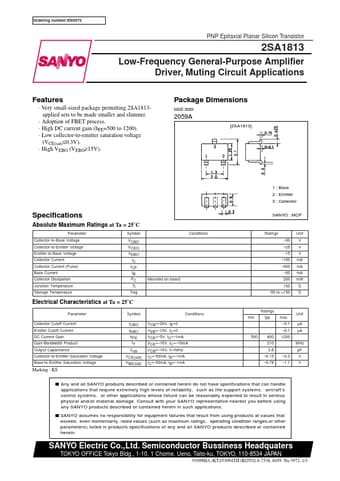

Preview of A1813 PDF
