VPS12 CRT Display Video Output Amplifier: High-Voltage/ Wideband Amplifier

VPS12 Description

Ordering number : EN5309A Wideband Output Module (Video Pack) VPS12 CRT Display Video Output Amplifier: High-Voltage, Wideband Amplifier .

VPS12 Features

* High output voltage and wide bandwidth: optimal for use in color monitors in the fH (horizontal deflection frequency) = 90-kHz class (f = 120 MHz
* 3 dB at VOUT = 40 Vp-p)
* Package: Molded 15-pin SIP package housing 3 channels in a single package Package Dimensions unit: m

📥 Download Datasheet

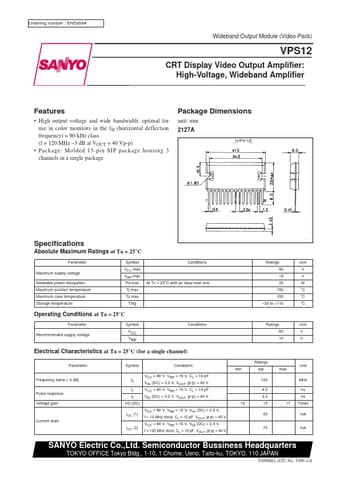

Preview of VPS12 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VPS12
Manufacturer
Sanyo Semicon Device
File Size
89.32 KB
Datasheet
VPS12_SanyoSemiconDevice.pdf
Description
CRT Display Video Output Amplifier: High-Voltage/ Wideband Amplifier
