VPS10 CRT Display Video Output Amplifier: High-Voltage/ Wideband Amplification

VPS10 Description

Ordering number : EN5209 Wide-Bandwidth Output Module (video pack) VPS10 CRT Display Video Output Amplifier: High-Voltage, Wideband Amplification F.

VPS10 Features

* High output voltage and wide bandwidth make the VPS10 optimal for use in f H (horizontal deflection frequency) = 85 kHz class color monitors. (f = 100 MHz
* 3 dB at VOUT = 50 Vp-p)
* SIP molded 15-pin package with three channels in a single package. Package Dimensions unit:

📥 Download Datasheet

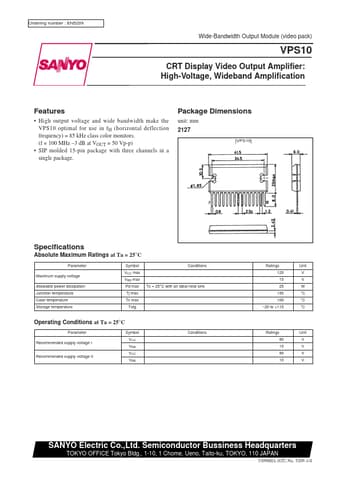

Preview of VPS10 PDF
