SB10-18K - 180V/ 1A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

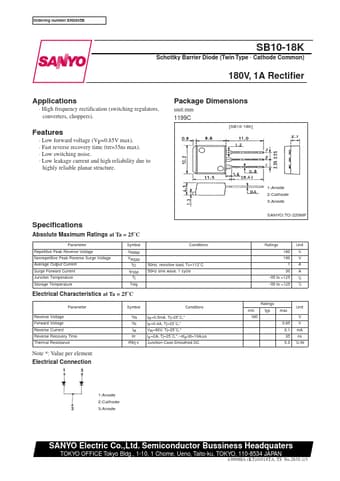

SB10-18K Datasheet Preview — Preview of SB10-18K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB10-18K
Manufacturer	Sanyo Semicon Device
File Size	85.36 KB
Description	180V/ 1A Rectifier
Datasheet	SB10-18K_SanyoSemiconDevice.pdf

SB10-18K Product details

Features

Low forward voltage (VF=0.85V max).
Fast reverse recovery time (trr=35ns max).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:Anode SANYO:TO-220MF Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM Tj T.
