SB10-18 - 80V/ 1A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

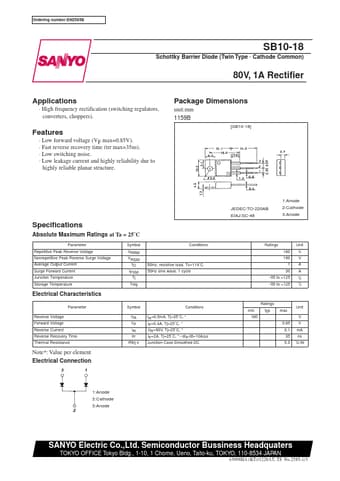

SB10-18 Datasheet Preview — Preview of SB10-18 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB10-18
Manufacturer	Sanyo Semicon Device
File Size	118.64 KB
Description	80V/ 1A Rectifier
Datasheet	SB10-18_SanyoSemiconDevice.pdf

SB10-18 Product details

Features

Low forward voltage (VF max=0.85V).
Fast reverse recovery time (trr max=35ns).
Low switching noise.
Low leakage current and highly reliability due to highly reliable planar structure. JEDEC:TO-220AB EIAJ:SC-46 1:Anode 2:Cathode 3:Anode Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRS.
