SB05-05 - 50V/ 500mA Rectifier

Sanyo Semicon Device

📥 Download Datasheet

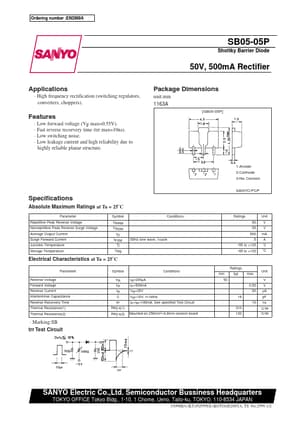

SB05-05 Datasheet Preview — Preview of SB05-05 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SB05-05
Manufacturer	Sanyo Semicon Device
File Size	57.93 KB
Description	50V/ 500mA Rectifier
Datasheet	SB05-05_SanyoSemiconDevice.pdf

SB05-05 Product details

Features

Low forward voltage (VF max=0.55V).
Fast reverse recorvery time (trr max=10ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. 1:Anode 2:Cathode 3:No Contact SANYO:PCP Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM Tj.
