LE25LB643 - Serial SPI EEPROM

Sanyo Semicon Device

📥 Download Datasheet

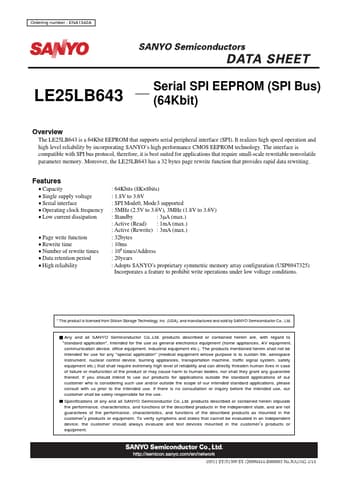

LE25LB643 Datasheet Preview — Preview of LE25LB643 PDF

Datasheet Details

Part number	LE25LB643
Manufacturer	Sanyo Semicon Device
File Size	320.16 KB
Description	Serial SPI EEPROM
Datasheet	LE25LB643_SanyoSemiconDevice.pdf

LE25LB643 Product details

Description

PIN.1 PIN.2 CS SO WP VSS SI SCK HOLD VDD Chip select Serial data output Write protect Ground Serial data input Serial clock Hold Power supply Pin Assignment CS SO WP VSS 1 2 3 4 8 7 6 5 VDD HOLD SCK SI PIN.3 PIN.4 PIN.5 PIN.6 PIN.7 PIN.8 Block Diagram ADDRESS BUFFERS & LATCHES XDECODER EEPROM Cell Array Y-DECODER CONTROL LOGIC I/O BUFFERS & DATA LATCHES SERIAL INTERFACE CS SCK SI SO WP HOLD 0.08 (0.85) 1.1MAX 0.5 No.NA1342-2/14 Datasheet pdf - http://www.DataSheet4U.net

Features

Capacity.
Single supply voltage.
Serial interface.
Operating clock frequency.
Low current dissipation.
Page write function.
Rewrite time.
Number of rewrite times.
Data retention period.
High reliability : 64Kbits (8K×8bits) : 1.8V to 3.6V : SPI Mode0, Mode3 supported : 5MHz (2.5V to 3.6V), 3MHz (1.8V to 3.6V) : Standby : 3μA (max. ) : Active (Read) : 1mA (max. ) : Active (Rewrite) : 3mA (max. ) : 32bytes : 10.
