LE25CA322 - Serial SPI EEPROM

Sanyo Semicon Device

📥 Download Datasheet

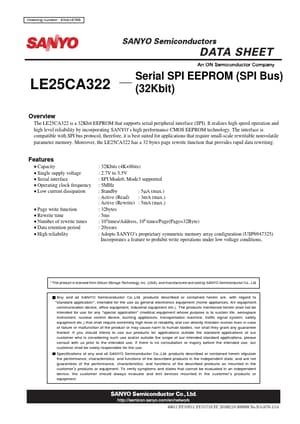

LE25CA322 Datasheet Preview — Preview of LE25CA322 PDF

Datasheet Details

Part number	LE25CA322
Manufacturer	Sanyo Semicon Device
File Size	287.78 KB
Description	Serial SPI EEPROM
Datasheet	LE25CA322_SanyoSemiconDevice.pdf

LE25CA322 Product details

Description

PIN.1 PIN.2 CS SO WP VSS SI SCK HOLD VDD Chip select Serial data output Write protect Ground Serial data input Serial clock Hold Power supply CS SO WP VSS 1 2 3 4 8 7 6 5 VDD HOLD SCK SI PIN.3 PIN.4 PIN.5 PIN.6 PIN.7 PIN.8 Block Diagram ADDRESS BUFFERS & LATCHES XDECODER EEPROM Cell Array Y-DECODER CONTROL LOGIC I/O BUFFERS & DATA LATCHES SERIAL INTERFACE CS SCK SI SO WP HOLD No.NA1678-3/14 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr LE25CA322 Specifica

Features

Capacity.
Single supply voltage.
Serial interface.
Operating clock frequency.
Low current dissipation.
Page write function.
Rewrite time.
Number of rewrite times.
Data retention period.
High reliability : 32Kbits (4K×8bits) : 2.7V to 5.5V : SPI Mode0, Mode3 supported : 5MHz : Standby : 5μA (max. ) : Active (Read) : 3mA (max. ) : Active (Rewrite) : 5mA (max. ) : 32bytes : 5ms : 105times/Address, 106 times/Page.
