FSS104 - DC/DC Converter Applications

Name: FSS104
SKU: FSS104-94025

Sanyo Semicon Device

The FSS104 by Sanyo Semicon Device is a DC/DC Converter Applications. Below is the official datasheet preview.

Datasheet Details

Part number	FSS104
Manufacturer	Sanyo Semicon Device
File Size	93.51 KB
Description	DC/DC Converter Applications
Datasheet	FSS104_SanyoSemiconDevice.pdf

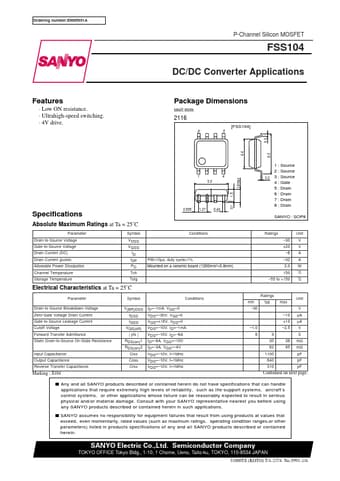

Additional preview pages of the FSS104 datasheet.

Low ON resistance.
Ultrahigh-speed switching.
4V drive. Package Dimensions unit:mm 2116 [FSS104] 8 5 0.3 4.4 6.0 5.0 1.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg 0.595 1.27 0.43 0.1 1.8max 1 4 0.2 1 : Source 2 : Source 3 : Source 4 : Gate 5 : Drain 6 : Dra.
